TGEX-FH-hG1-Zeo
Heavy Chain Cloning Vector for the Mammalian Expression of Human IgG1 Fab Fragments
Technical Description
The TGEX™ vector series is designed for the rapid expression of antibody molecules by transient gene expression in mammalian cell suspension cultures. TGEX™-FH-hG1-Zeo expresses the CH1 constant region of the human IgG1 heavy chain. Expression of Fab fragments is obtained by co-transfection with a light chain variable region cloned into one of the TGEX™-LC vector series. Using transient transfection technologies yields of antibody between 20 mg/L and 200 mg/L and more in serum-free conditions can be obtained in just a few days.
Applications
Mammalian expression of Fab fragments by transient gene expression.
Selection of stable transfectants using Zeocin™.
For research use only; not intended for any animal or human therapeutic or diagnostic use.
Specifications
General Characteristics:

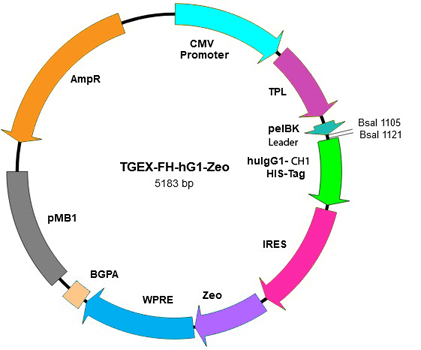

Plasmid Size: 5183
Promoter: CMV + TPL
Leader Peptide: pelBK

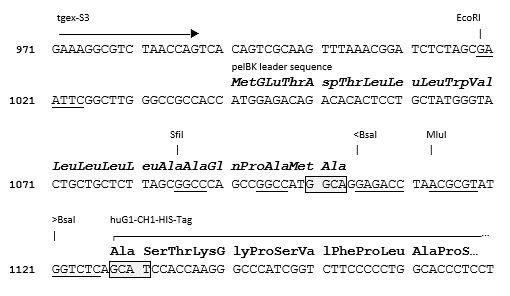

Cloning Site: Double BsaI
Fusion Protein: human IgG1 CH1 constant region
Selection: ampicillin (bacteria), zeocin™ (mammalian)
Replication: pMB1 high copy number
Physical Characteristics:
Concentration: 0.5 µg/µl.
Product Size: 10 µg.
Buffer: DNA Conservation Buffer (Tris/HCL 5 mM, EDTA 0.1 mM, pH 8.5, sterile).
Storage Temperature: -20°C.
Quality Control & Certification of Analysis
Product Sequence:
The entire plasmid sequence was confirmed by the Sanger method.
Certification:
Product meets all specifications.
Citations
Mukherjee A., Stathos ME., Varner C., Arsiwala A., Frey S., Hu Y., Smalley DM., Schaffer DV., Kane RS. (2020). One-pot synthesis of heterodimeric agonists that activate the canonical Wnt signaling pathway. Chem. Commun. (Camb) 56(25):3685-3688.
